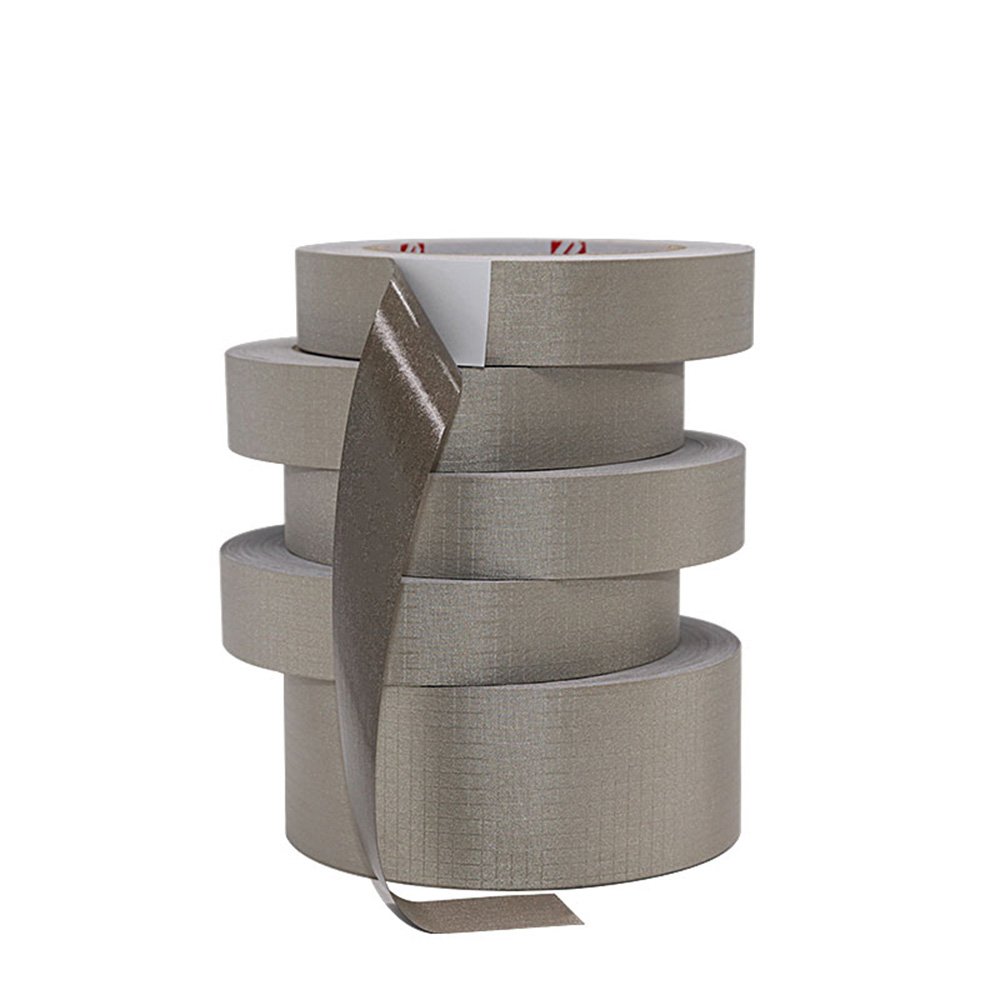

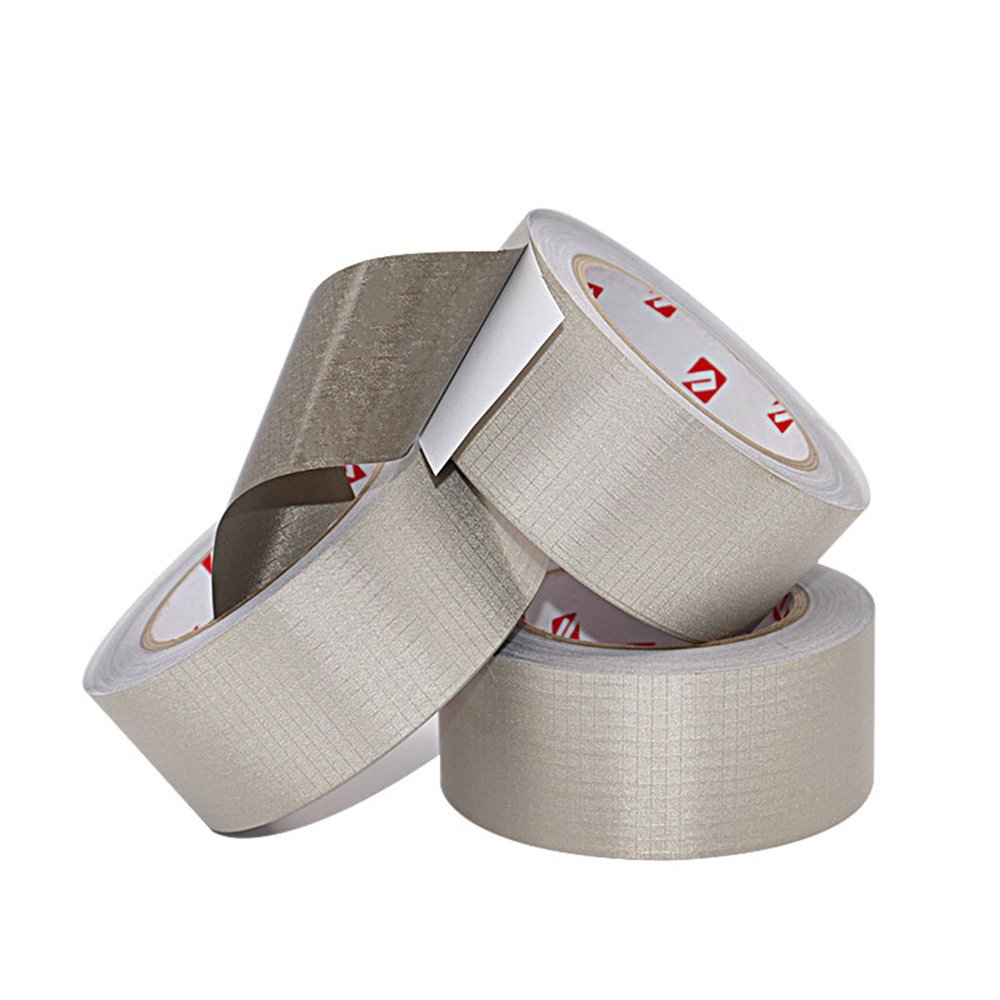

The conductive cloth tape is first plated with a highly conductive copper layer on a polyester material, then plated with anti-oxidation and anti-corrosion nickel metal on the copper layer, the combination of copper and nickel provides excellent conductivity and good electromagnetic wave shielding effect, and then backed with conductive adhesive on one side. It has good electrical conductivity, excellent shielding effect, good anti-friction properties, good metal bonding, better Z-directional conductivity, good processability, soft texture, slitting without burrs, resistance to handprint soiling, anti-oxidation treatment and other characteristics.
Conductive cloth tape is suitable for computers, mobile phones, wires, cables and other types of electronic and electrical products, mainly for masking or isolating electromagnetic waves or interference from infinite waves during high frequency transmission.
Property | |||||||||
Product Code Technical Parameters |
P0403 | P0405 | P0407 | P0408 | P0410 | P0412 | P0415 | P0420 | P0426 |
Color | Grey(Square/Plain) | ||||||||
Total Thickness[mm] | 0.03 | 0.05 | 0.07 | 0.08 | 0.1 | 0.12 | 0.15 | 0.2 | 0.26 |
Backing Thickness[mm] | 0.02 | 0.03 | 0.05 | 0.05 | 0.08 | 0.08 | 0.1 | 0.16 | 0.22 |
Backing | Conductive Cloth | ||||||||
Adhesive | Conductive Acrylic | ||||||||
180°Peel Strength[N/inch] | 8 | 10 | 12 | 12 | 12 | 12 | 12 | 12 | 12 |
Initial Adhesion[#] | 1 | 1 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
Retentivity[hour] | 48 | ||||||||
Surface Resistance[mΩ] | 50 | ||||||||
Long-Term Temperature Resistance[℃] | 80 | ||||||||
Short-Term Temperature Resistance[℃] | 120 |
Specification data
