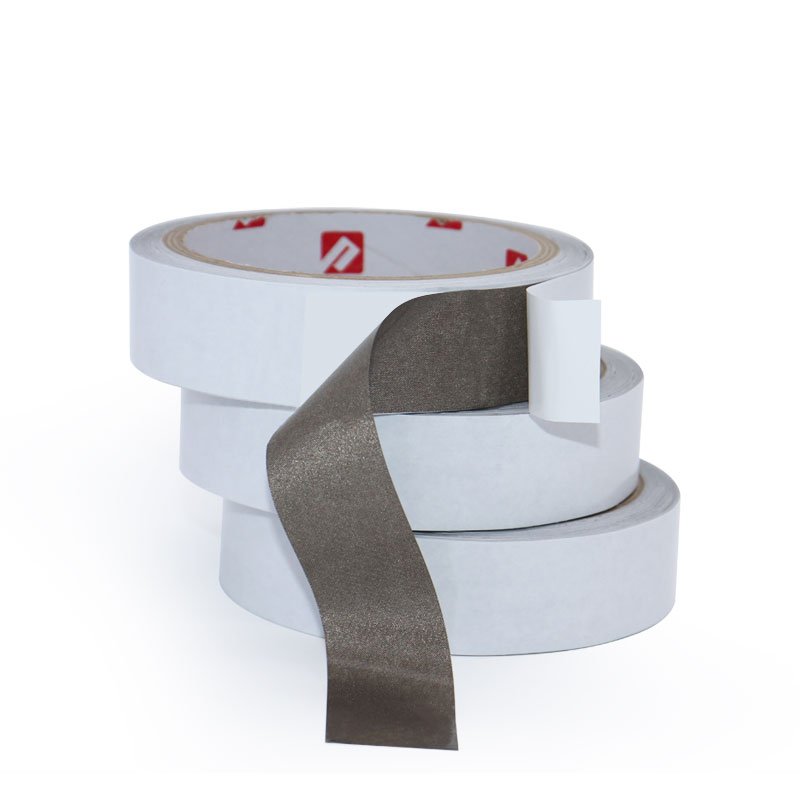

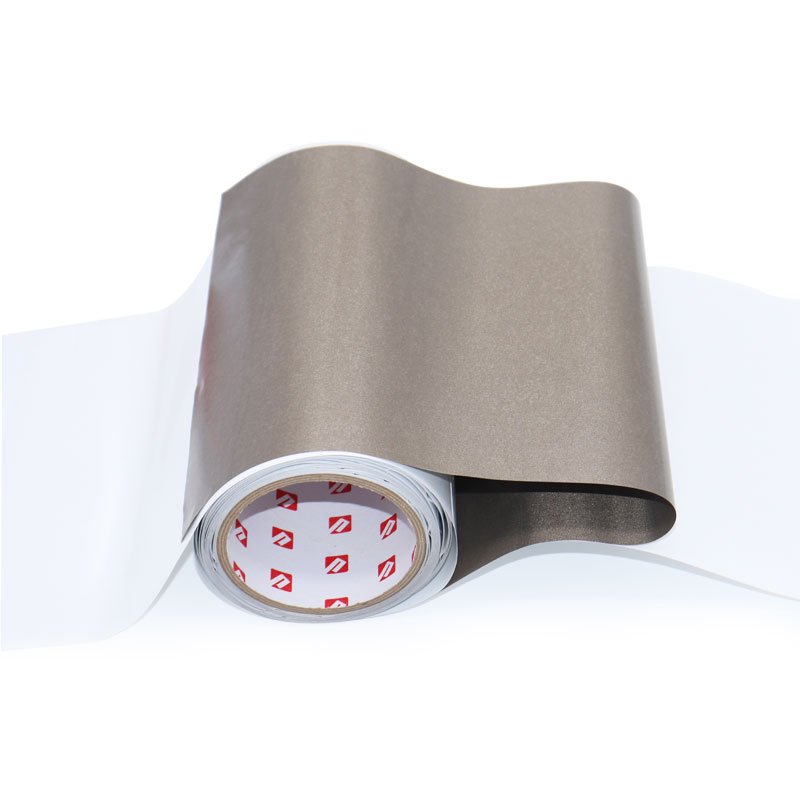

Double Sided Conductive Cloth Tape

Double Sided Conductive Cloth Tape is first on the polyester material, electroplated with high conductivity copper layer, in the copper layer and then electroplated with anti-oxidation, anti-corrosion nickel metal, the combination of copper and nickel to provide excellent electrical conductivity and good electromagnetic wave shielding effect, and then double-sided backed with conductive adhesive. It has good electrical conductivity, excellent shielding effect, good anti-friction properties, good metal bonding, better Z-directional conductivity, good processability, soft texture, slitting without burrs, resistance to handprint soiling, anti-oxidation treatment and other characteristics.

Request A Quote

application

Suitable for computers, mobile phones, wires, cables and other types of electronic and electrical products, mainly for masking or isolating interference from electromagnetic or infinite waves during high frequency transmission.

Property

Property
Product Code
Technical Parameters
P0405D P0408D P0410D P0412D P0415D P0420D
Color White
 Total Thickness[mm] 0.05 0.08 0.1 0.12 0.15 0.2
Backing Thickness[mm] 0.03 0.03 0.08 0.08 0.08 0.08
Backing Conductive Cloth
Adhesive Conductive Acrylic
180°Peel Strength[N/inch] 12/12 12/12 12/12 15/15 15/15 15/15
Initial Adhesion[#] 2 2 2 2 2 2
Retentivity[hour] 48
Surface Resistance[mΩ] 50
Long-Term Temperature Resistance[℃] 80
Short-Term Temperature Resistance[℃] 120
