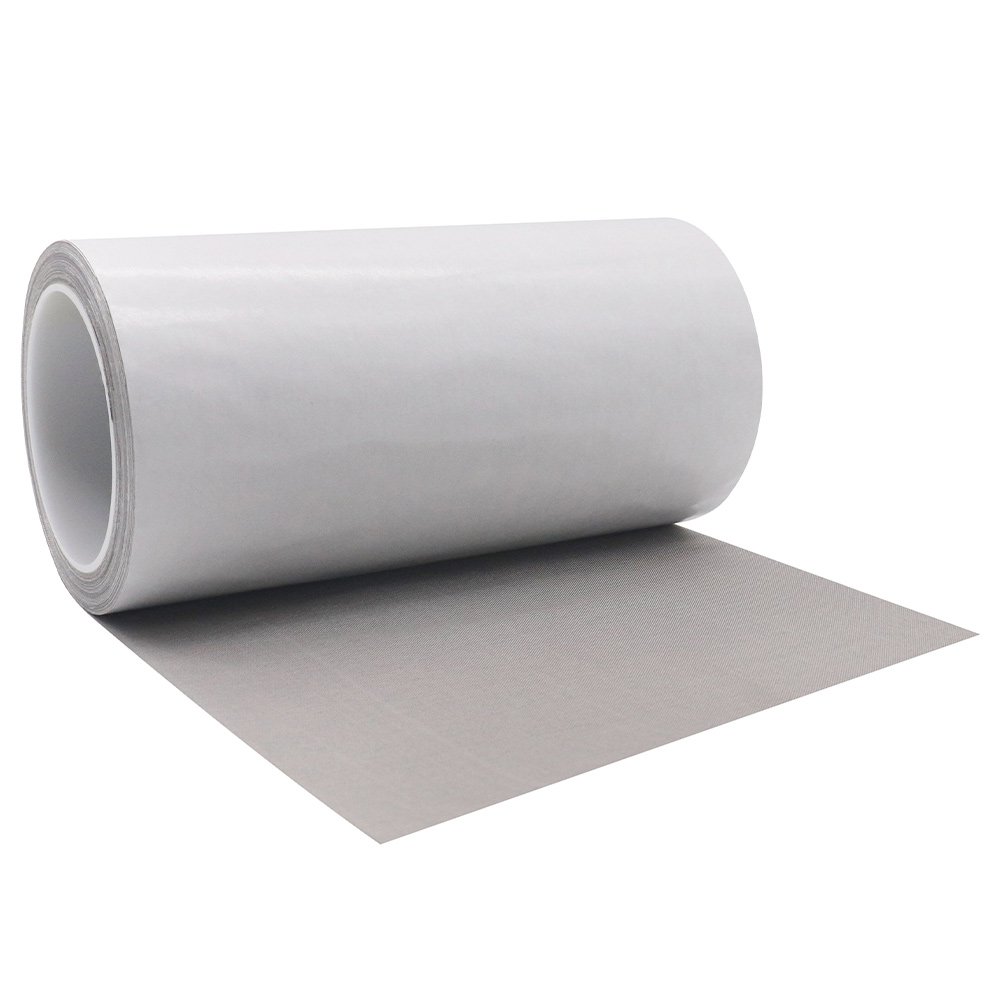

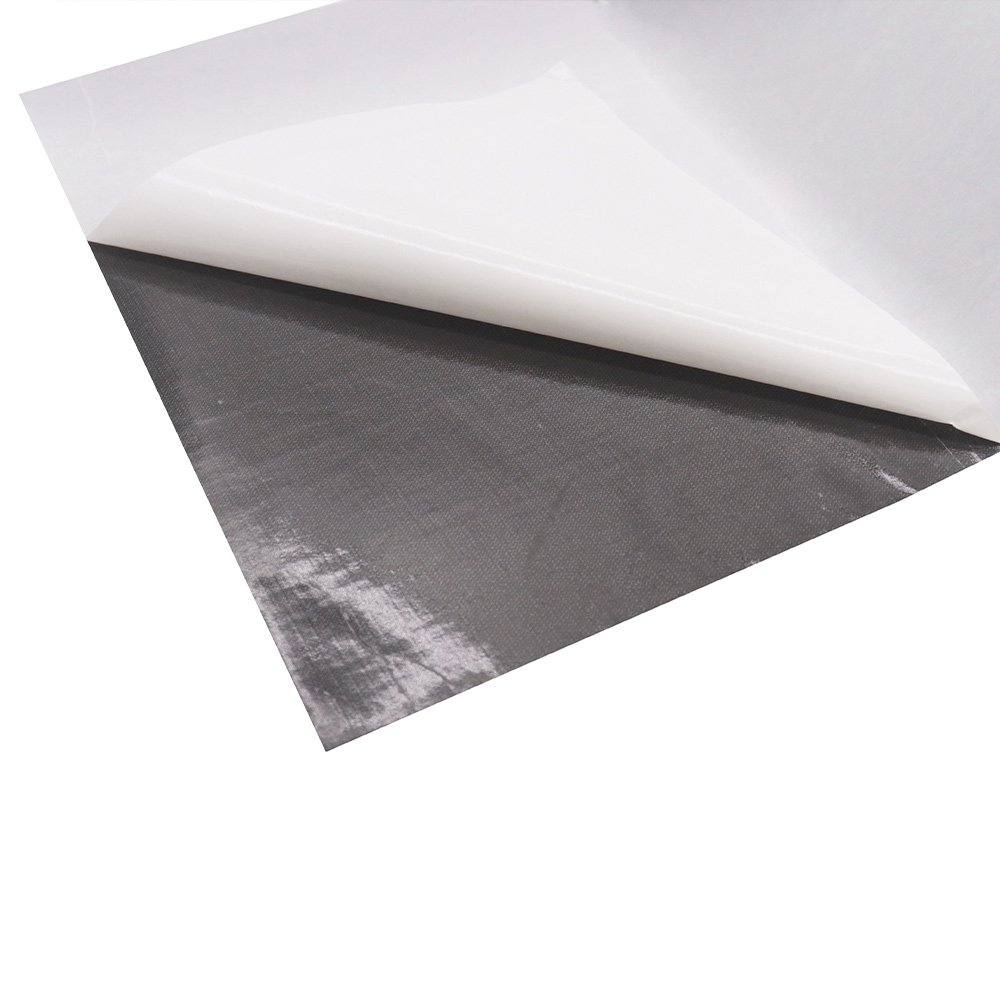

P69000C-B fireproof ceramic silicone tape is mainly processed from fireproof ceramicized silicone rubber and fireproof reinforcing glass fiber, it is a high-strength flexible composite product with good high-temperature resistance and excellent electric insulation. It can resist flame ablation up to 1000 degrees and avoid flame spreading to other areas. Its unique features enable the material to address safety and design issues in electric vehicle batteries, railroad trains and electronic appliances.
1.PACK Battery Packs and High Voltage Electrical Connection Structures Fireproofing and Insulation.
2.Aerospace Cargo Fire Shelter.
3.Protective Coating for Brake Lines in Railway Vehicles.
4.Fire Barriers Between Railroad Passenger Cars.
| Identity | Typical value | Unit | Test method |
| Physical property | |||
| Standard thickness | 0.2/0.3/0.4/0.6/0.8/1.2 | mm | ASTM D374 |
| Standard colors | White, Orange, Black | / | Visual |
| Durometer | 60 | SHA | GB/T 531.1-2008 |
| Densities | 1.57 | g/cm3 | GB/T 5019.2-2009 |
| Tensile strength | 40 | MPa | GB/T 528-1998 |
| Tear strength | 60 | kN/m | GB/T-529-2008 |
| Electrical and thermal properties | |||
| Flame retardant | VTM-0 or V-0
|
/ | UL 94 |
| Bulk resistivity | 6.0*1014 | Ω·cm | GB/T 1692-2008 |
| High insulation resistivity (800°C) | 0.8*106 | Ω | GB/T 10581-2006 |
| Thermal conductivity | <0.05 | W/(m.K） | GB/T 10295-2008 |
| Dielectric Strengths | 28 | kV/mm | IEC 60243-1 |
| Elastic holding temperature range | -55~+200 | ˚C | Internal Methods |
Product Features
1.Composite high-strength refractory fabric for high mechanical strength.
2.Crusts into a ceramic-like structure at high temperatures or in a flame, giving it excellent electrical insulation properties.
3.Low smoke, low flame, low flue gas toxicity during combustion process.
4.Can be processed to ultra-thin thicknesses with excellent flexibility.
Product specifications
1.1000mm*250m
2.1000mm*300m
3.Other customization
Specification data
