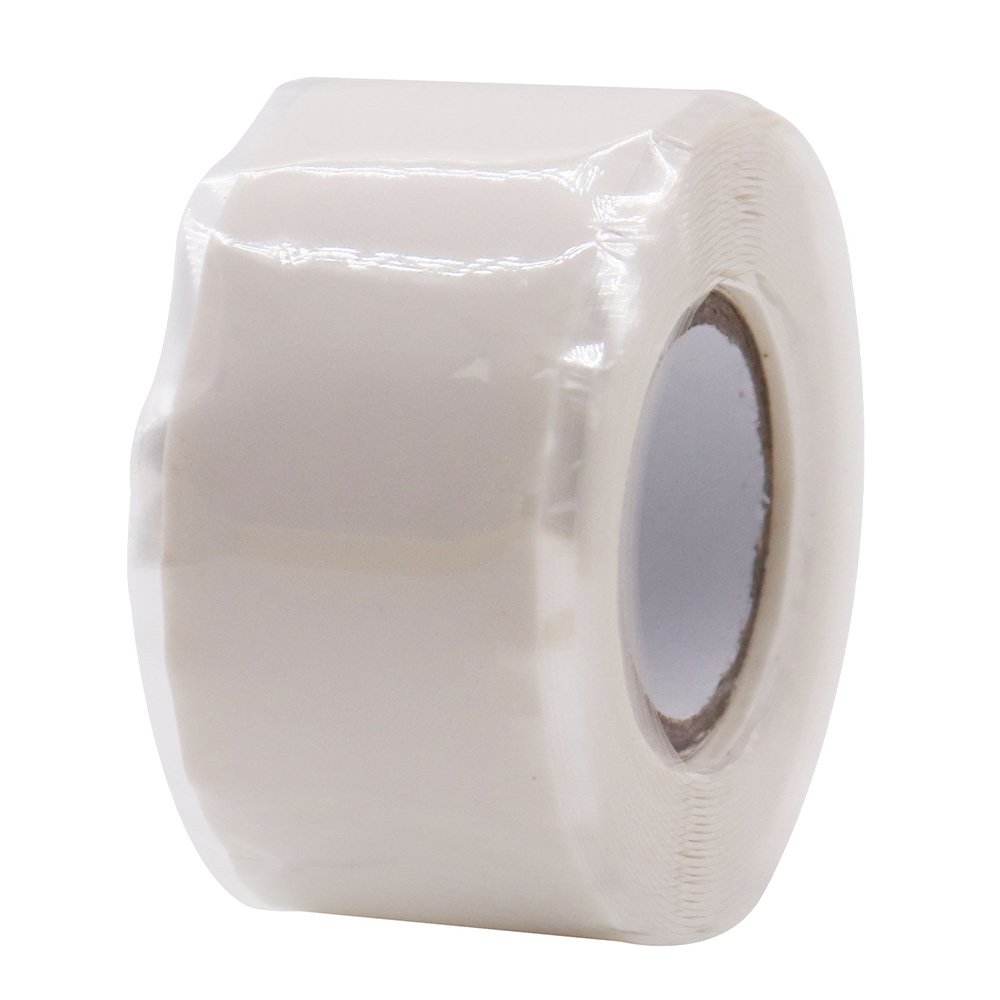

Low temperature resistant silicone rubber self-adhesive tape

P77000 non-flame retardant silicone self-adhesive tape is composed of self-adhesive, excellent resilience of self-fusing silicone rubber compounded with a layer of easy to separate isolation film. And has excellent high and low temperature resistance, can be used for a long time in the temperature range of -60 ℃ -180 ℃, emergency overload temperature up to 300 ℃, easy to use, can be realized in a short period of time completely self-fusion, non-delamination, good sealing performance.

Request A Quote

application

1.For use on high voltage cables to provide good resistance to arcing and leakage traces.

2.For insulation protection in power cables, switchgear and all kinds of electrical equipment.

3.For sealing of water pipes and faucets.

4.For temperature-resistant insulation class H.

5.Emergency pipeline rehabilitation, automotive engine compartment pipeline rehabilitation.

6.Cushioning protection for sporting goods, tool grips.

Property

Test items Typical value Unit Test standard
Durometer 50 A GB/T 531.1-2008
Tensile Strengths 7 MPa GB/T 528-2009
Elongation at break 400 % GB/T 528-2009
Dielectric Strengths 22 KV/mm  GB/T1408.1-2006
Bulk resistivity 3.20×1014 Ω.cm GB/T1410-20060

description

Product Features

1.Excellent resistance to arcing, leakage and ozone.

2.Excellent insulation properties, weathering properties, low temperature resistance, self-adhesion.

3.Good temperature resistance, can be used at 180 ℃ for a long time.

4.The surface of the adhesive tape is not sticky to the touch and will not stain the substrate and can be removed by cutting with a knife.



Product specifications

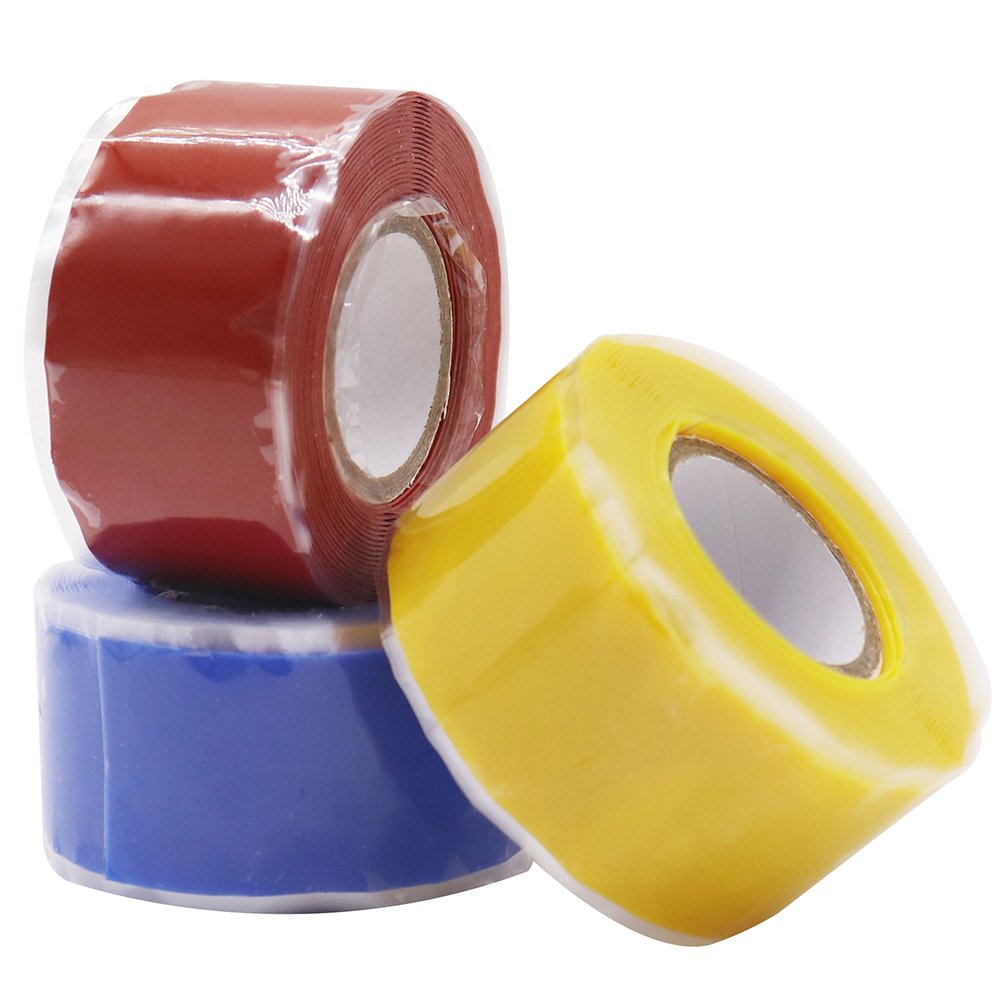

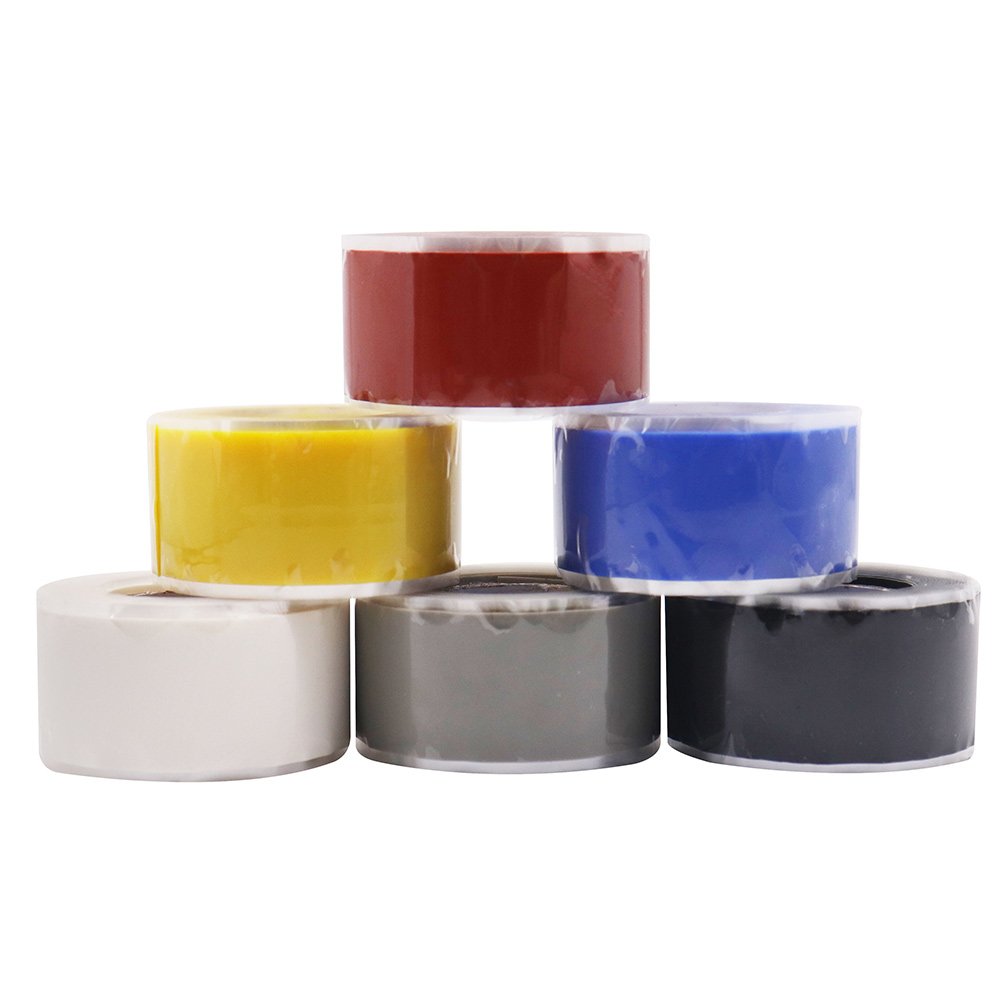

Color: red, yellow, green, blue, gray, black

Common specifications: thickness*width*length

1.3mm*25mm*9100mm

2.5mm*25/50mm*5000mm

3.8mm*25/50mm*5000mm(10kv)

4.0mm*50mm*5000mm(35kv)

5.2mm*25mm*5000mm(35kv)

6.5mm*30mm*5000mm(35kv)

7. Other customization



How to use the product

Remove the barrier film, stretch the tape 10%-100%, wrap 50% over 50%, and wrap two completely overlapping wraps at the beginning and end.
