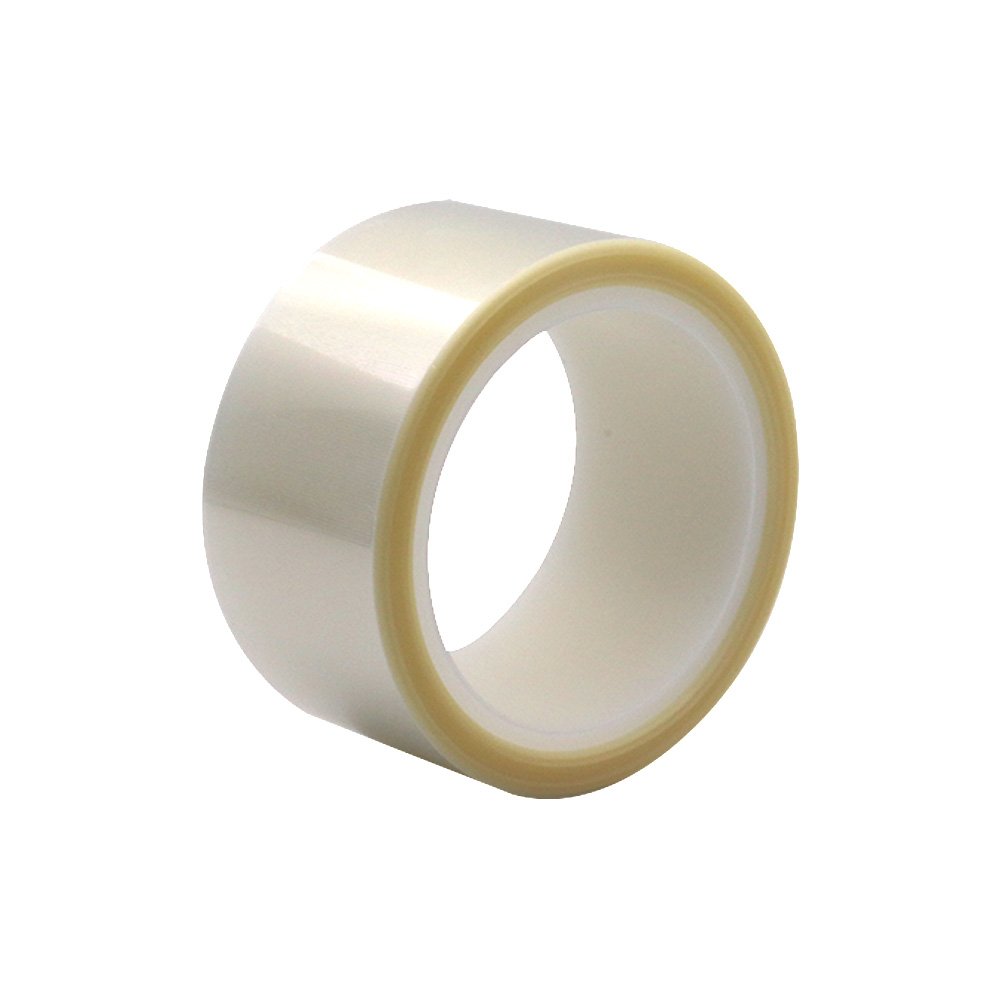

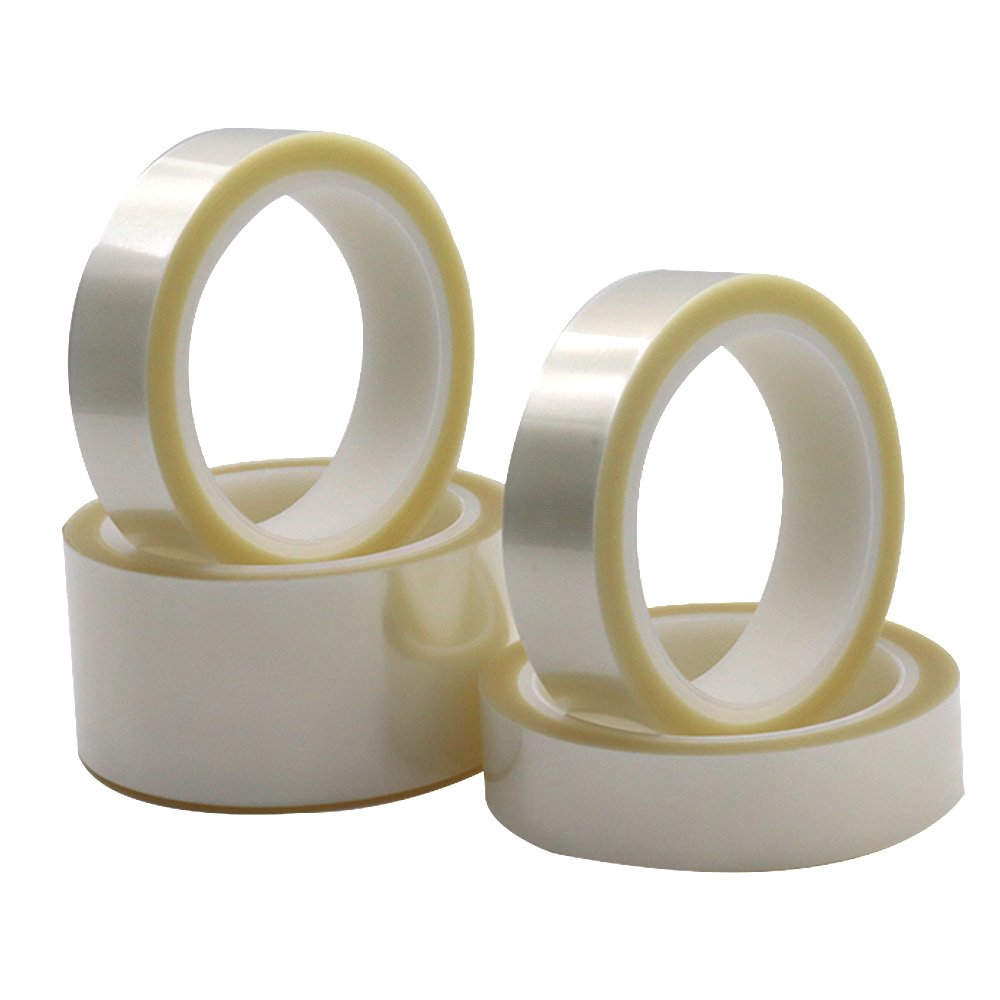

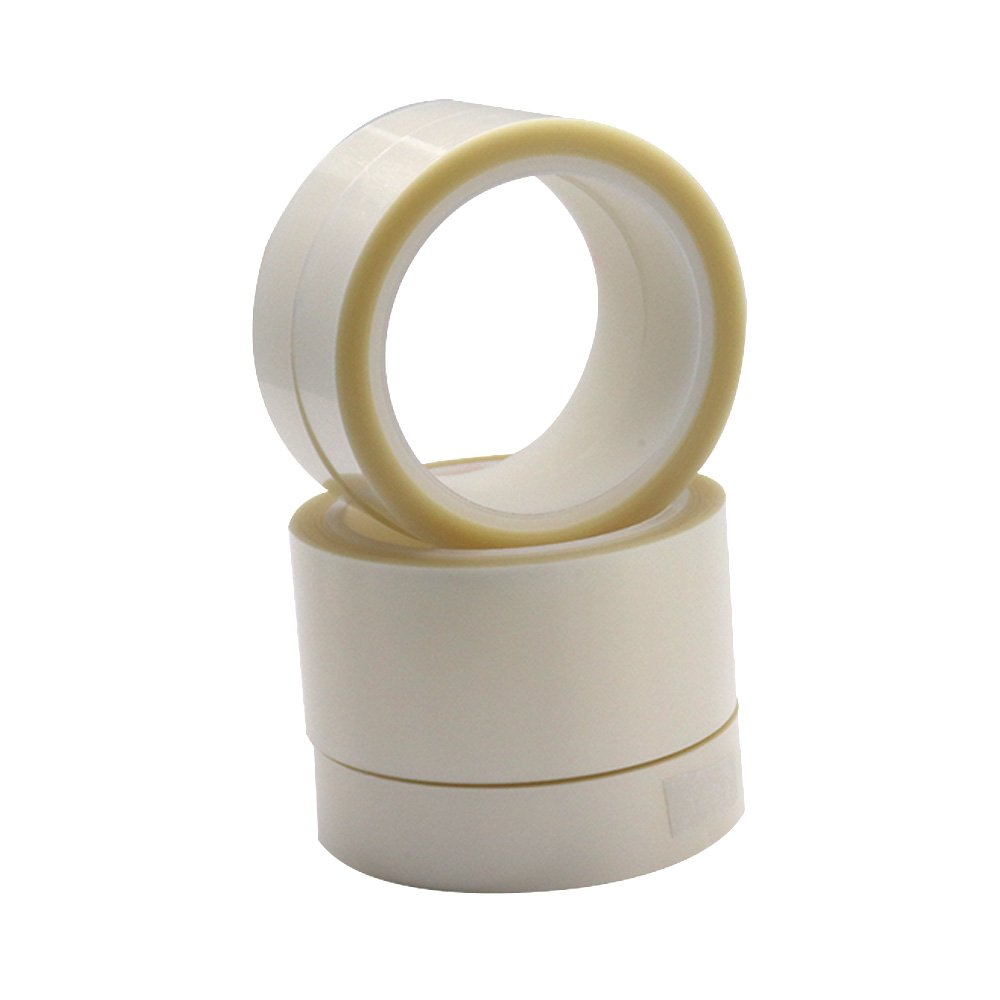

P3201GE double-sided tape is a highly transparent PET double-sided tape made of PET as the base material, evenlycoated with high-performance acrylic pressure-sensitive adhesive on both sides, and compounded with release films on both sides.
1.Fixed pasting of backlight module, LED reflective film and other parts.
2.Fixing and pasting of electronic and electrical components and dust screens.
3.Bonding and fixing of nameplate and Membrane switch.
4.Fix and paste FPC.
5.Paste and fix the internal structure of OLED.
6.The module is fixed with protective film.
7.Temporary fixation of mobile phone components.
8.Paste the graphite chip inside the phone.
9.Paste the spray coating board on the surface of the small electric door.
10.Sticking of non-polar materials (such as PP, PE, TPO and other polyolefin materials)
|
Product Code |
Color | Total Thickness [um] | Backing [mm] | Adhesive | Initial Tack [mm] |
180°Peel Strength [N/inch] |
Retentivity [hour] |
Long-Term Temperature Resistance [℃] | Short-Term Temperature Resistance [℃] |
| P3201GE | Transparent | 10 | 0.002 | Acrylic | ≤100 | A≥5.5 B≥6.5 |
≥24 | 60 | 80 |
| P3203GE | Transparent | 30 | 0.012 | Acrylic | ≤100 | A≥10 B≥7 |
≥24 | 60 | 80 |
Specification data
