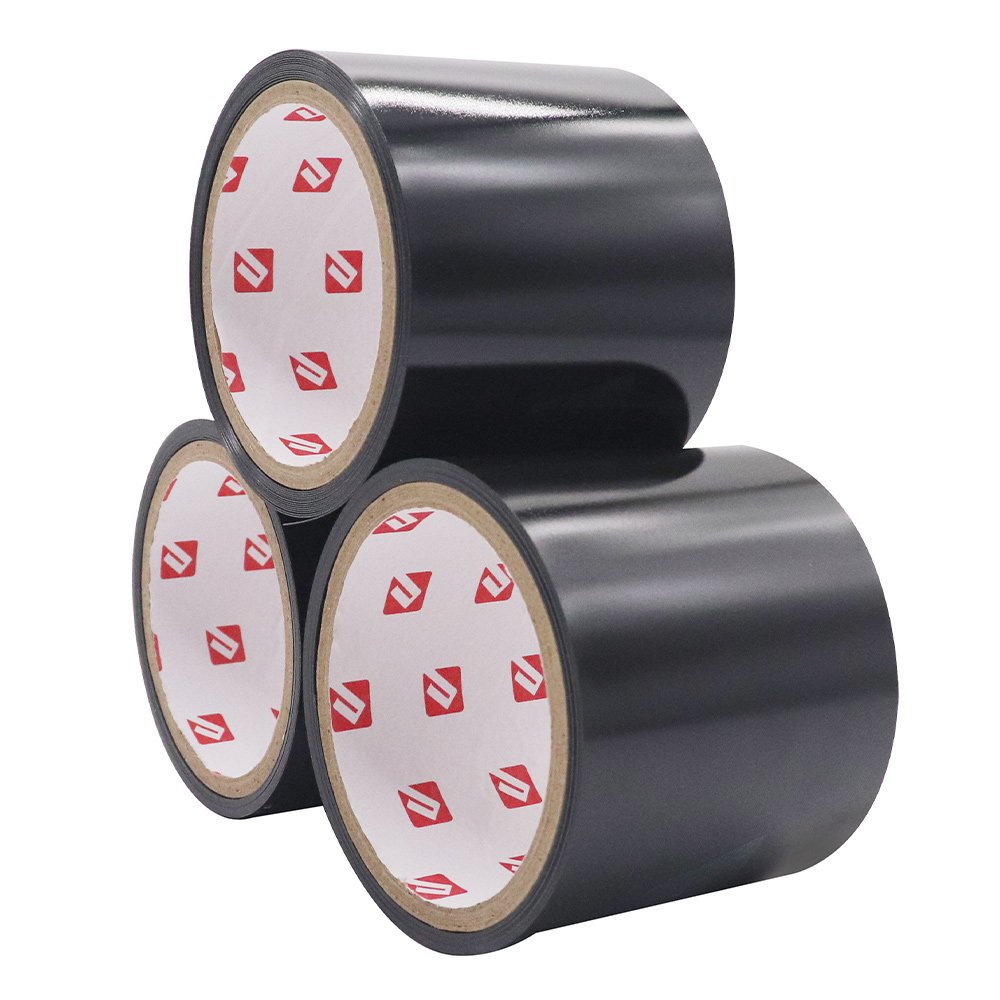

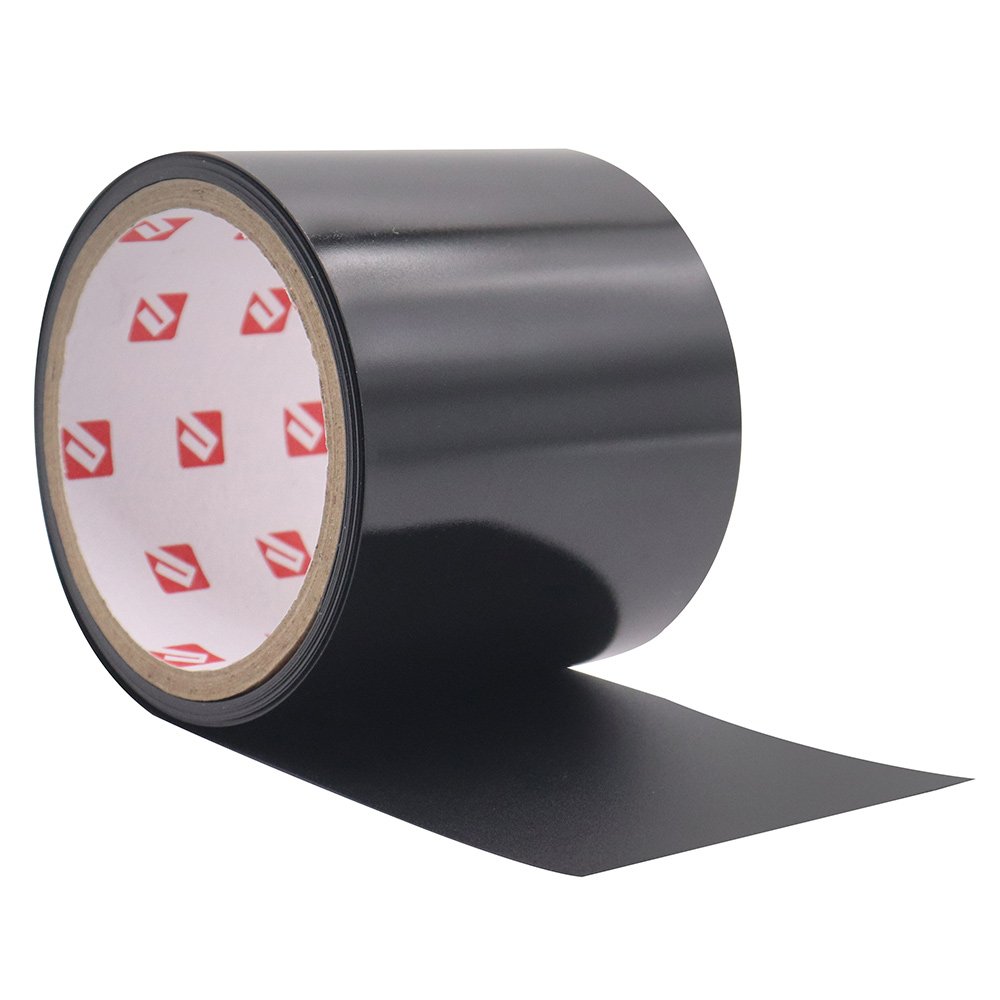

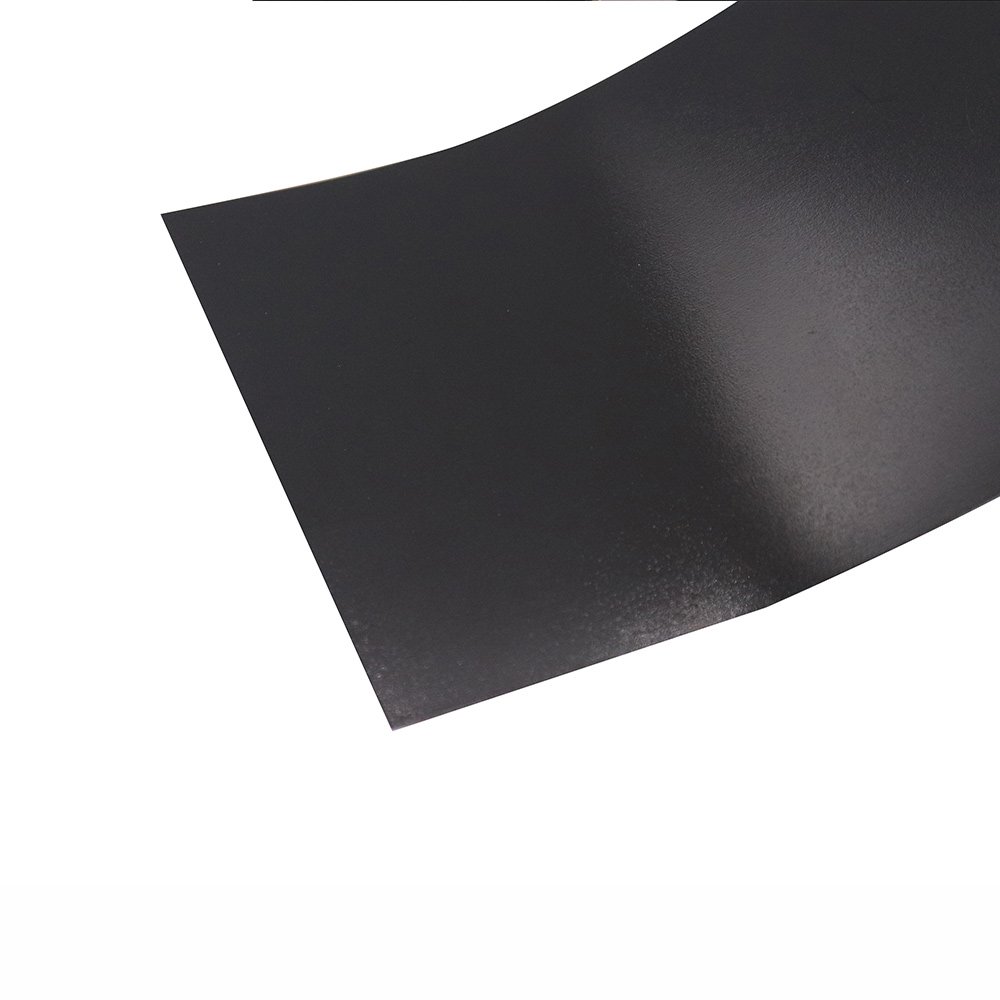

P97000B is a halogen-free, heavy metal-free, phosphate-free, truly green and environmentally friendly flame retardant polycarbonate film, which meets the requirements of European environmental regulations such as ROHS, TCO & Blue Angel, and the strict UL safety specifications, and its environmentally friendly characteristics make it easy to recycle and reuse. Compared with traditional flame retardant PC, its mechanical properties are more superior, better appearance quality, more stable and consistent color.
For printing panels, signs, etc. with flame-retardant requirements
For IMD applications with flame retardant requirements
Laminating insulation and masking for power supplies, TVs/monitors, business machines, etc
For use where internal components need to be concealed or to achieve a specific design aesthetic
Battery core application: The battery core is mainly used for the positive and negative electrode top patches of the battery core.
CCS application: CCS blister bracket and CCS die-cut bracket
In the new energy PACK package cover plate, package bending cover plate
| Property | Weight per roll LB | Roll length M | Area per pound M2/Lb |
| PHYSICAL | |||
| SpecificGravity | ASTM D792 | g/cm3 | 1.21 |
| MECHANICAL | |||
| Tensile Strength | ASTM D882 | MPa | 55 |
| Elongation at break | ASTM D882 | % | 90 |
| Impact strength @ 10mils | JIS-K6745 | In-lbs | 120 |
| THERMAL | |||
| Vicat Softening Point 120 ℃/hr, 10N load | ISO 306 | ℃ | 151 |
| ELECTRICAL | |||
| Dielectric Strength (@ 10mils) | ASTM D149 | V/mil | 1,700 |
| Volume Resistivity @25℃,50%RH | ASTM D257 | Ω•cm | 1016 |
| Surface Resistivity @25℃,50%RH | ASTM D257 | Ω | 1015 |
| FLAMMABILITY | UL BULLETIN 94 | ||
| ULFlammability ≤0.25mm | UL 94 | VTM-0 | |
Product Features
1.The use of halogen-free flame retardants, environmental compliance, with excellent flame retardant properties
2.Good visual effect and color stabilitye
3.Easy thermoforming or cold bending, IMD compatible
4.It has excellent flame retardancy, heat resistance, high voltage resistance, low water absorption, bending resistance, tear resistance, and is not easy to break.
ULFile No：E199019
Type Color Surface texture Thickness（mm） Width（mm） Feature P97000B Black Matte / Fine velvet 0.050~0.250（0.002′′~0.010′′） 930（3′） Flammability VTM-0
Thickness tolerance Unit Limit ＜0.250mm 0.250mm % ±10% ±5%
Surface texture Thickness(mm) Test value of gloss Matte 0.050～0.250 ＜5.0 Finevelvet 0.05 ＜4.5 ＞0.05 3.0~6.0
Package Details
Thickness mm Weight per roll kg
Weight per roll Lb
Each pound Area mm×mm
Roll length M Area per pound M2/Lb 0.050（0.002′′） 80 176 930×8409 1480 7.82 0.075（0.003′′） 80 176 930×5659 996 5.26 0.100（0.004′′） 80 176 930×4323 761 4.02 0.125（0.005′′） 89.3 197 930×3385 667 3.15 0.150（0.006′′） 89.3 197 930×2812 554 2.62 0.175（0.007′′） 89.3 197 930×2406 474 2.24 0.250（0.010′′） 89.3 197 930×1619 319 1.51
HALOGEN-FREE P9700B FILM
Environment-Protection Index DFR117ECOA RoHS Rule Accord REACH Rule Accord Br <900ppm Cl <900ppm Cl+Br <1500ppm Phthalates Accord PAHs Accord TBBPA Accord PFOS Accord PFOA Accord
Specification data
