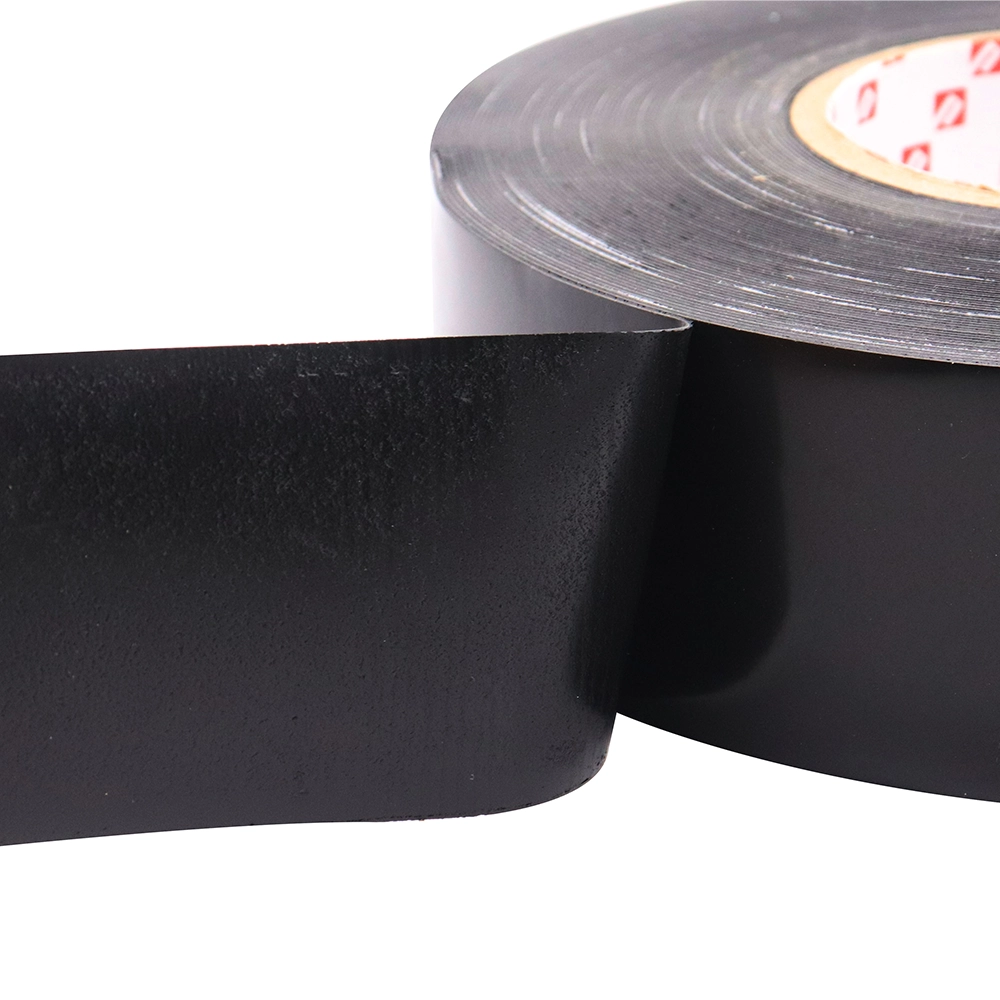

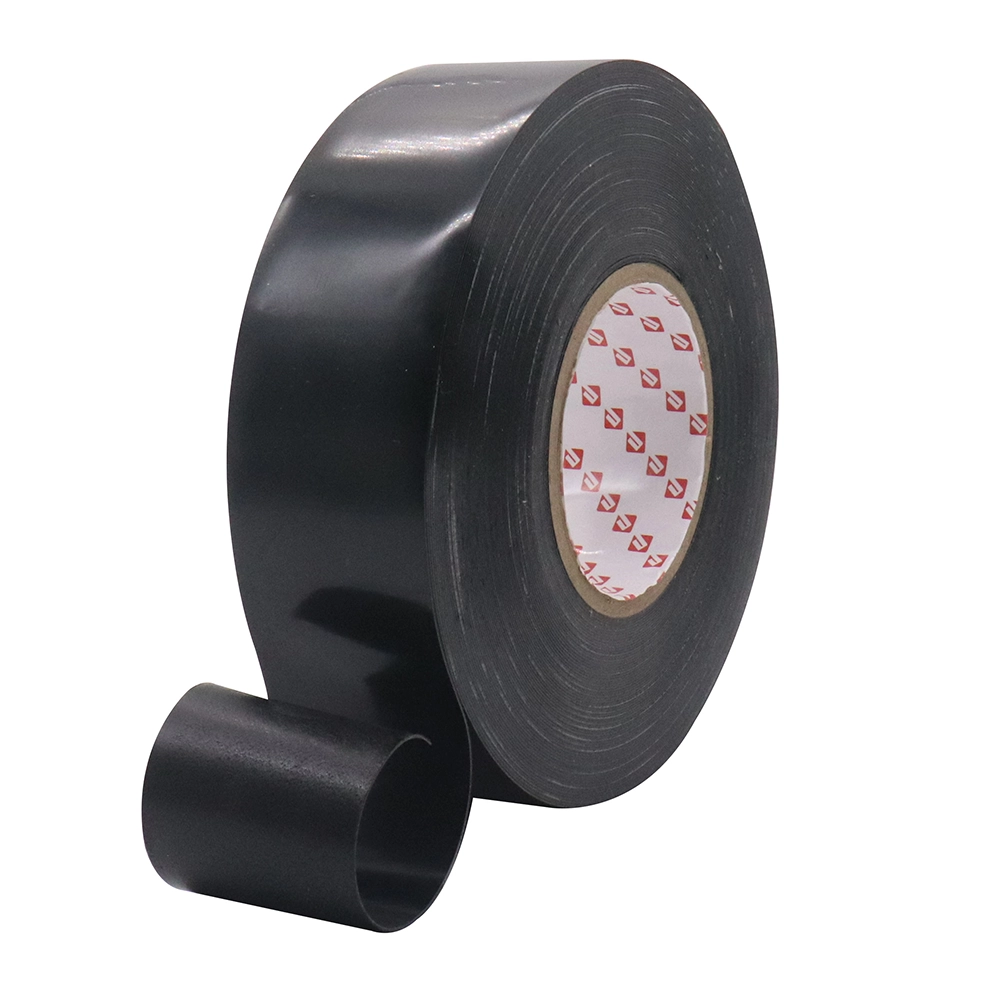

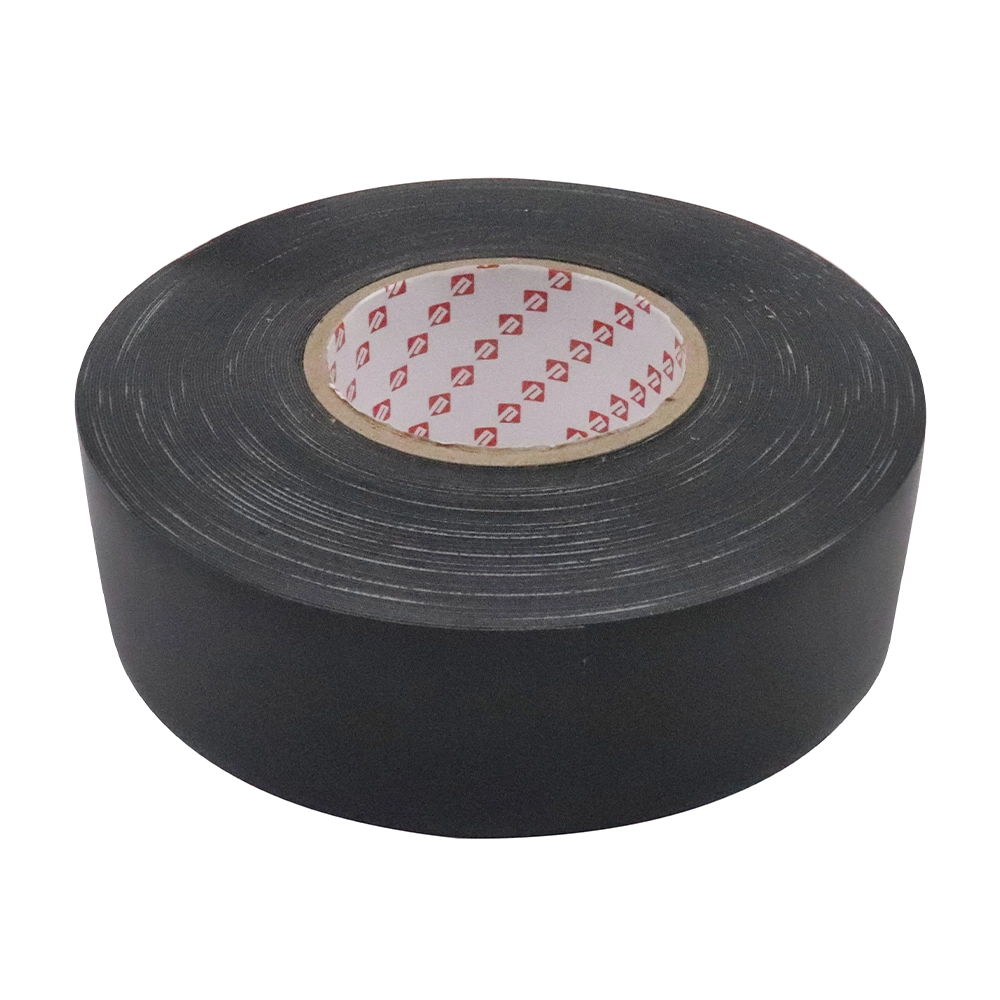

PBL-3700 series Polyethylene adhesive inner tape is also called polyethylene adhesive tape or polyethylene tape. It is a roll-shaped anti-corrosion material that is thermally laminated from a rubber layer with butyl rubber as the main component to a substrate layer with polyethylene as the main component. It is also called pipeline anti-corrosion tape. The rubber layer ensures the adhesion, water absorption and sealing of the product; the substrate layer effectively ensures the water permeability, heat aging resistance, tensile strength and impact resistance of the tape as a whole.
It is widely used in external corrosion protection of metal pipes in various pipeline projects and facilities such as petroleum, natural gas, chemical industry, electric power, metallurgy, urban gas pipeline network, water supply, etc.
Test items | Typical value | Unit | Test method | |
color | Black, gray, white, yellow | – | Visual inspection | |
Release material | PVC | – | – | |
texture of timber | Butyl rubber, polyethylene(PE) | – | – | |
thickness | custom made | mm | ASTM D-3652 | |
Tensile strength | ≥23 | Mpa | ASTM D-3759 | |
elongation | ≥1000 | % | ASTM D-3759 | |
Peel strength | Primer steel | ≥50 | N/cm | GB/T 2792 |
Adhesive tape backing | ≥5 | GB/T 2792 | ||
Layer | ≥5 | SY/T0414 7.5 | ||
Electrical strength | ≥30 | MV/m | GB/T 1408.1 | |
Volume resistivity | ≥1×1012 | Ω·m | GB/T 1410 | |
Heat aging resistance | ≥75 | – | SY/T0414A | |
Water absorption | ≤0.2 | – | SY/T0414B | |
Water vapor permeability | ≤0.45 | mg/24h.cm* | GB/T1037 | |
UV aging resistance(600h) | ≥80 | % | SY/T0413 | |
Shock resistance (23℃) | 7 | J | SY/T0414C | |
Operating temperature | -10~70 | ℃ | – | |
Cathodic stripping (23°C, 28d) | ≥5 | mm | SY/T0415 |
Supporting Materials
Polyethylene adhesive tape, matching anti-corrosion primer
Product Features
Excellent self-adhesion to pipes, can be used in a wide temperature range, good plasticity and consistent thickness, easy to apply, no special equipment required, compatible with traditional pipe coatings, and has excellent resistance
Specification data
