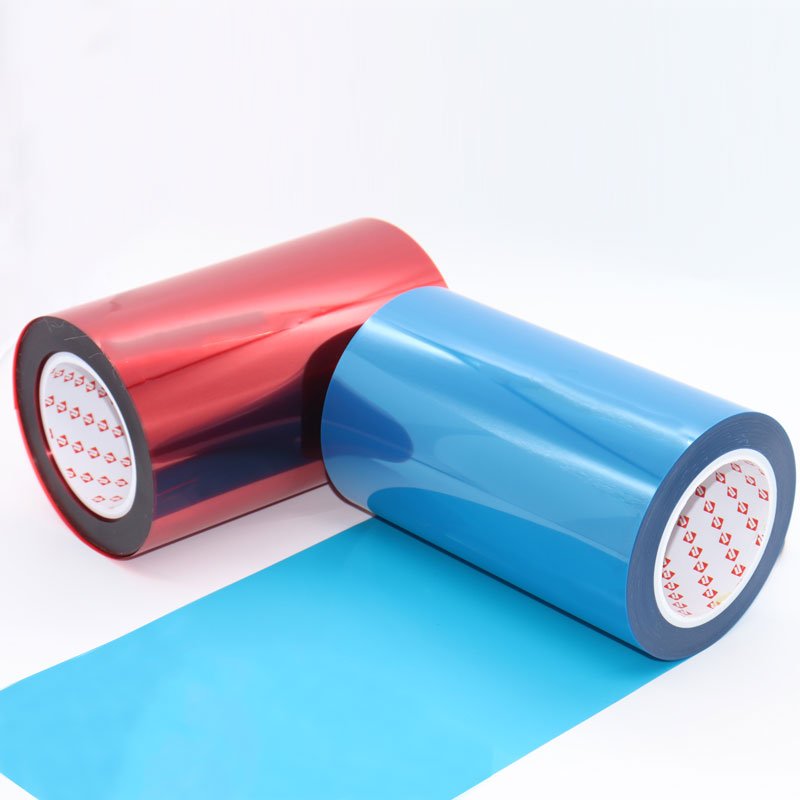

Single Side Acrylic PET Protective Film uses PET as carrier and coated with a high-performance acrylic pressure-sensitive adhesive. It has good weather resistance, good heat resistance, acid and alkali resistance and can be adhered to a variety of material surfaces.
1. Surface protection during product transportation.
2. Protection of all kinds of lenses and screen engineering.
3. Protection of plastic parts such as plastic cases and keyboards.
4. Die-cutting carrier and transfer of various films and tapes and waste discharge.
5. Different viscosity of protective film, can be used as a support carrier for different thickness of foam die-cutting.
6.Temporary transfer and fixing of electronic products.
| Property | ||||||||
| Product Code Technical Parameters |
P4000A1 | P4000A3 | P4000A5 | P4000A8 | P4000A12 | P4000A18 | P4000A30 | P4000A45 |
| Color | Transparent/White/Blue/Black/Red/Green/Matte（Customization） | |||||||
| Total Thickness[mm] | 0.028～0.110 | 0.028～0.110 | 0.028～0.110 | 0.028～0.110 | 0.028～0.110 | 0.028～0.110 | 0.028～0.110 | 0.028～0.110 |
| Backing Thickness[mm] | 0.025/0.038/0.05/0.075 | |||||||
| Backing[mm] | PET | PET | PET | PET | PET | PET | PET | PET |
| Adhesive | Acrylic | Acrylic | Acrylic | Acrylic | Acrylic | Acrylic | Acrylic | Acrylic |
| 180°Peel Strength[g/inch] | 1～3 | 3～5 | 5～8 | 8～12 | 12～18 | 18～30 | 30～45 | 45～65 |
| Tensile Strength[N/inch] | ≥120 | ≥120 | ≥120 | ≥120 | ≥120 | ≥120 | ≥120 | ≥120 |
| Elongation At Break[%] | ≥70 | ≥70 | ≥70 | ≥70 | ≥70 | ≥70 | ≥70 | ≥70 |
| Long-Term Temperature Resistance[℃] | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 |
| Short-Term Temperature Resistance[℃] | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 |
Specification data
