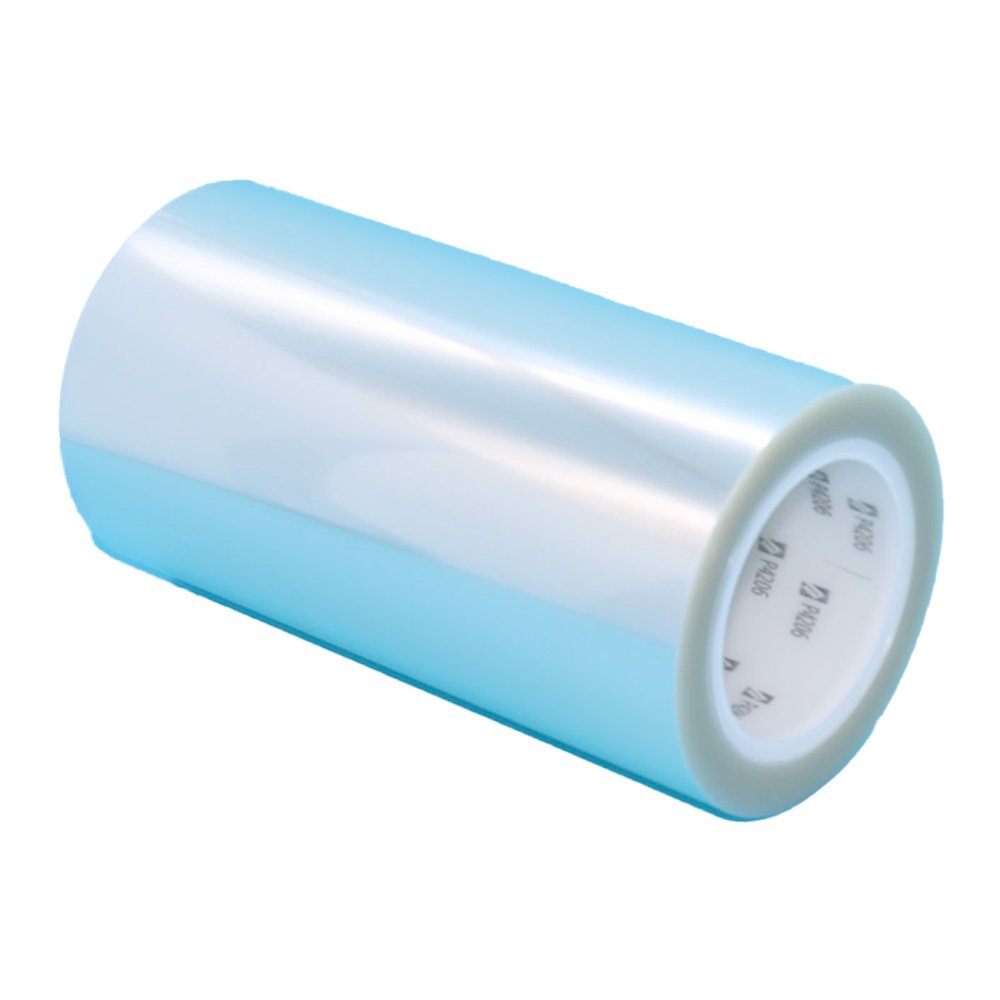

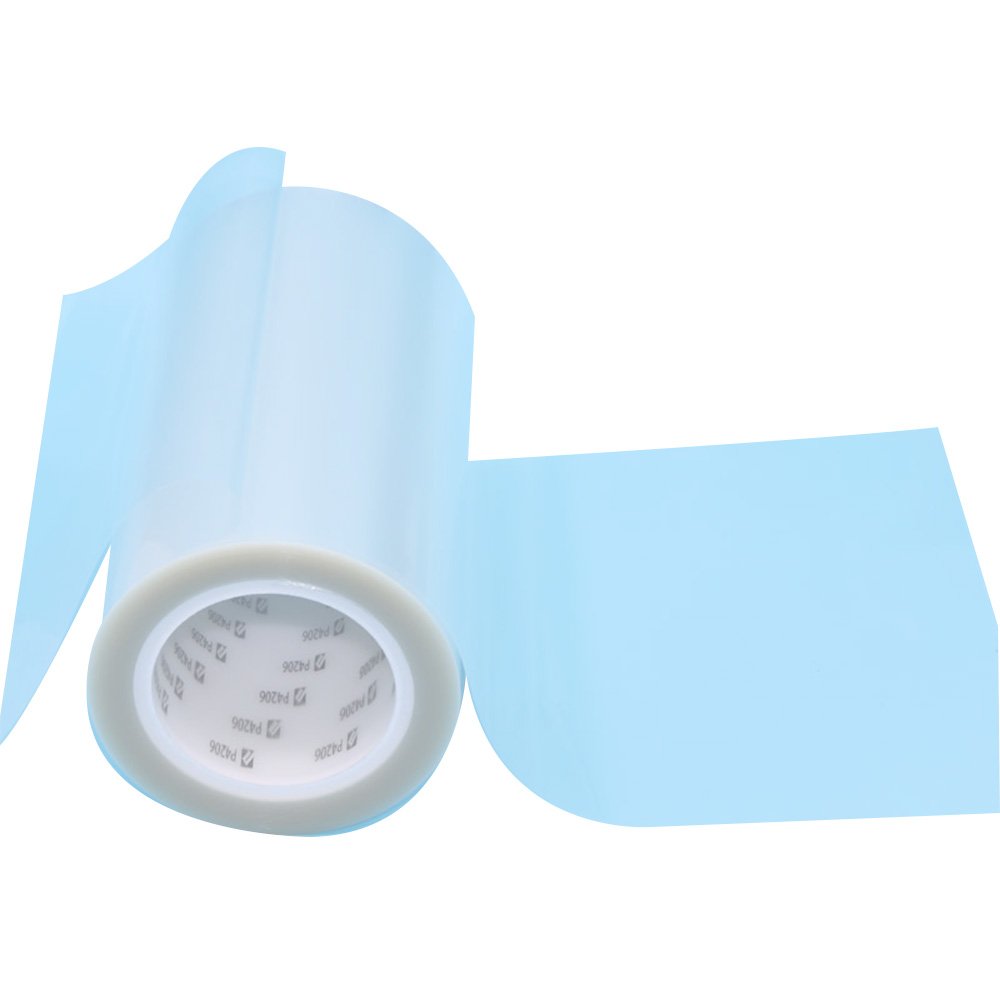

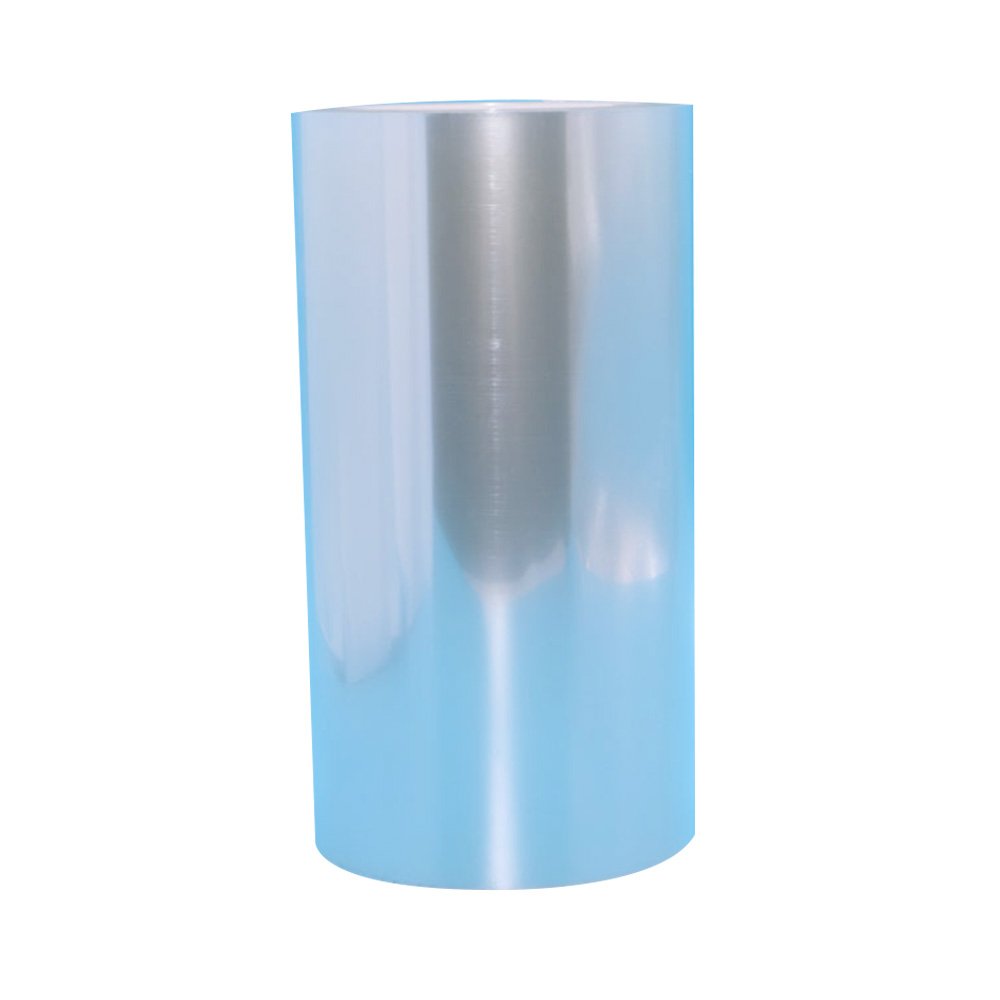

OCA optical adhesive is mainly composed of acrylate pressure sensitive adhesive and is made of a composite release film. It has excellent optical properties/acid free, good functional sheet material compatibility (ITO, AgNW, etc.), excellent reliability, and good differential absorption.
1. LCD module and TP are fully bonded.
2.TSP bonding (G/F/F, G/F, P/F, etc.), explosion-proof film bonding, optical compensation film, polarizer bonding.
| Property | |||||||||
| Product Code Technical Parameters |
P-DB606 | P-DB607 | P-DB608 | P-DB610 | P-6015 | P-6025 | P-6050 | P-6125 | P-6175 |
| Application | Full Fit OCA | Full Fit OCA | Full Fit OCA | Full Fit OCA | Dedicated To TSP | Dedicated To TSP | Dedicated To TSP | Dedicated To TSP | Dedicated To TSP |
| Color | Transparent | Transparent | Transparent | Transparent | Transparent | Transparent | Transparent | Transparent | Transparent |
| Thickness[um] | 150 | 175 | 200 | 250 | 15 | 25 | 50 | 125 | 175 |
| Light Release Film Thickness[um] | 75 | 75 | 75 | 75 | 50 | 50 | 50 | 50/75 | 75 |
| Heavy Release Film Thickness[um] | 100 | 100 | 100 | 100 | 50 | 50/75 | 50/75 | 75 | 75/100 |
| Light Transmittance[%] | 93.2 | 93.2 | 93.2 | 93.2 | 92.3 | 92.3 | 92.3 | 92.3 | 92.3 |
| Haze[%] | 0.15 | 0.15 | 0.15 | 0.15 | 0.13 | 0.13 | 0.13 | 0.15 | 0.15 |
| Chromatic Aberration[L*a*b*] | 96.86 / -0.06/0.14 | 95.6 / -0.06 /0.14 | 95.6 / -0.06 /0.14 | 95.6 / -0.06 /0.14 | 96.8 / -0.06/ 0.15 | 96.8 / -0.06/ 0.15 | 96.8 / -0.06/ 0.15 | 96.8 / -0.06/ 0.15 | 96.8 / -0.06/ 0.15 |
| Refractive Index[n/25℃] | 1.478 | 1.478 | 1.478 | 1.478 | 1.478 | 1.478 | 1.478 | 1.478 | 1.478 |
| 180°Peel Strength [gf/25㎜，SUS] |
> 1,300 | > 1,500 | > 1,800 | > 2,000 | > 800 | > 1,000 | > 1,200 | > 1,600 | > 1,800 |
| Retention[Min（1,000g,SUS）] | >1,000 | >1,000 | >1,000 | >1,000 | >1,000 | >1,000 | >1,000 | >1,000 | >1,000 |
| Dielectric Constant | 3.2 | 3.2 | 3.2 | 3.2 | 3.2 | 3.2 | 3.2 | 3.2 | 3.2 |
Specification data
